Opticon CRD1006. Type oplader: Binnen, Type stroombron: AC, Lader compatibiliteit: Barcode-lezer. Ingangsspanning: 100 - 240, Uitgangsspanning (max): 6 V. Aantal USB 2.0-poorten: 1, Oplaadtijd: 120 min. Kleur van het product: Zwart

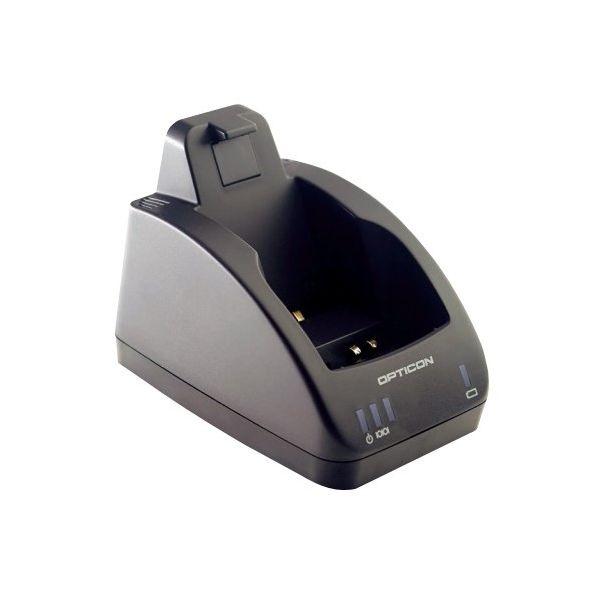

Opticon CRD1006 is equipped with charging & communication features for the OPH1003 / OPH1004 / OPH1005. Two slots provide charging of both the docked terminal and a spare battery. The external communication is supported by either RS232 or USB interface.

Electrical specifications

- Voltage requirement: 6 V DC output for terminal charging, 4.2 DC output for battery charging.
- Battery charging time: max. 2.5 hours.

Communication specifications

- Available interfaces: RS232, USB VCP (serial port).
- Transmission speed: baud rate: 2.4 - 115.2kbps.
- Transmission mode: half duplex RS232.

Environmental specifications

Temperature during charging: -10 to 45 °C / 14 to 113 °F.

Physical specifications

- Dimensions: 68 x 96 x 70mm / 2.68 x 3.78 x 2.76in.
- Case material: ABS.
- Weight body: ca. 110g / 3.9oz.

Regulatory

- Product compliance: CE, FCC, VCCI, RoHS.
